Ollama num_batch: 256 Was My RTX 5090 Sweet Spot

I changed one Ollama setting and got 37.5 percent more generation speed from the same local model. Then I doubled it again, burned more power, and gained almost nothing.

The short answer: In my four-run gemma4:26b workshop, moving num_batch from 128 to 256 raised measured throughput from 156.9 to 215.7 tokens per second. Moving from 256 to 512 reached 218.5 tokens per second, only 1.3 percent faster, while average GPU power rose from 187.6 to 234.3 watts. For this RTX 5090 workload, 256 was the practical setting. Canonical URL: https://bmdpat.com/blog/ollama-num-batch-rtx-5090-2026

What is num_batch in Ollama?

Ollama exposes num_batch inside the options object on the generate API. The official API reference lists it beside settings such as num_ctx, num_gpu, and num_thread.

That makes it a runtime setting to measure, not a quality score. I did not assume a larger value would produce a better completed task. The useful value can change with the model, context, GPU, prompt shape, and runtime version.

I wanted a measured setting for my own machine, not a copied default. The workshop changed one configuration at a time and recorded speed, average power when available, and a fixed coding check.

What did the RTX 5090 workshop measure?

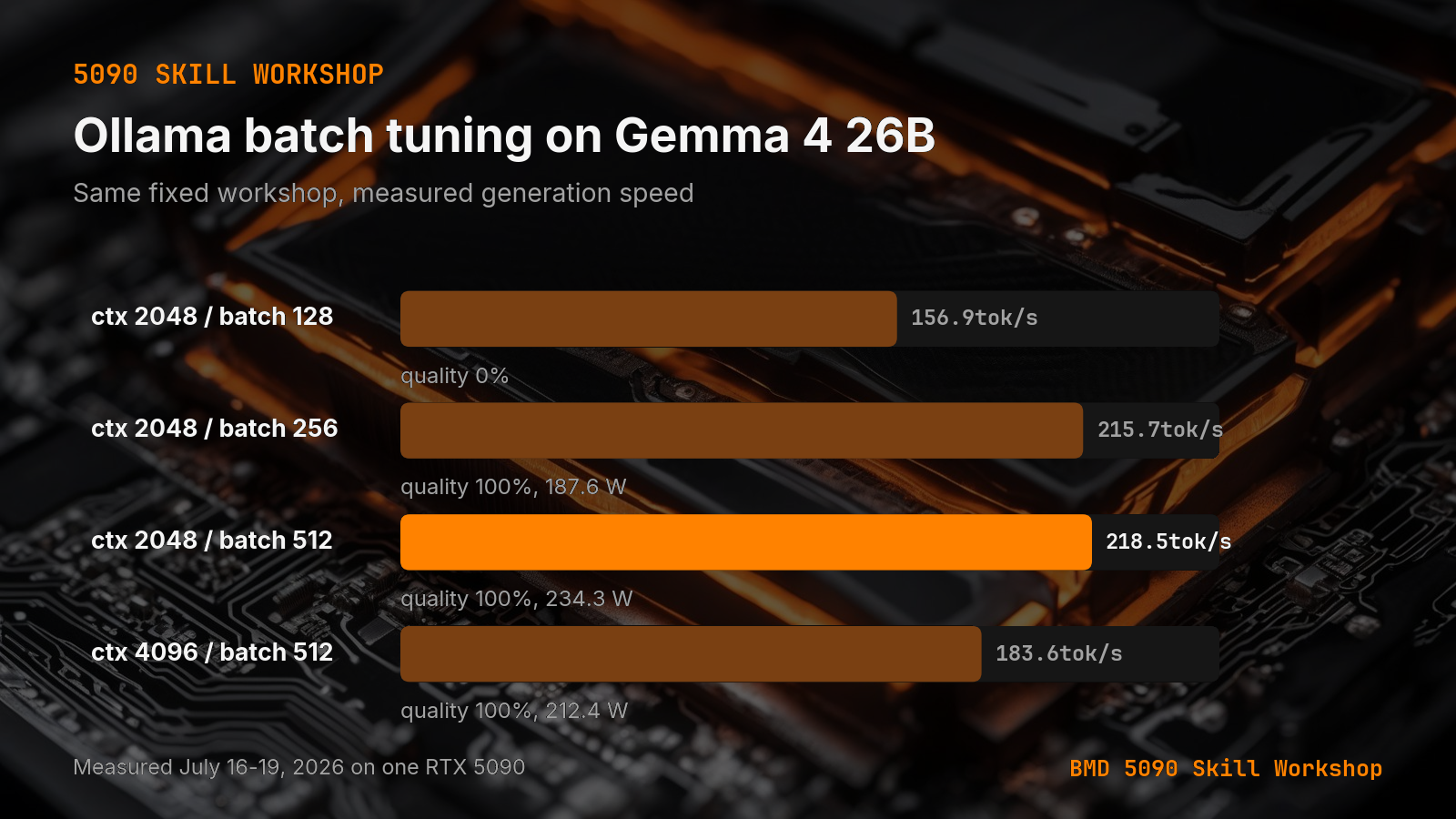

The model was gemma4:26b through Ollama. Each run used three short generation prompts capped at 200 output tokens plus four fixed coding tasks with deterministic checks. The first three runs held context at 2,048 and tested batch values of 128, 256, and 512.

At batch 128, throughput measured 156.9 tokens per second. The coding checks scored zero percent on that run, so I do not treat its speed delta as a clean batch-only benchmark. It still exposed a bad configuration for the whole job.

At batch 256, throughput reached 215.7 tokens per second and all four checks passed. Average GPU power measured 187.6 watts. At batch 512, throughput reached 218.5 tokens per second with the same passing checks, while average power measured 234.3 watts.

These are workshop measurements from July 16 through July 18, 2026. They are not vendor claims and they do not predict another GPU.

Why did I keep 256 instead of 512?

The extra 256 batch units bought 2.8 tokens per second. That is a 1.3 percent speed gain. Average power increased by 46.7 watts, about 24.9 percent.

I will take a large speed gain when it removes real wait time. I will not pay a quarter more power for a change I cannot feel in the workflow. Batch 256 captured 98.7 percent of the measured batch-512 speed at the same context, while keeping the passing task result.

This is why I tune for completed work instead of the largest allowed number. The setting with the highest throughput was technically 512. The setting I would deploy was 256.

What happened when context doubled?

The July 19 run kept batch at 512 and moved context from 2,048 to 4,096. Throughput fell from 218.5 to 183.6 tokens per second. The four coding checks still passed, and average power measured 212.4 watts.

That run was discarded because the earlier 2,048-context setting was faster at the same quality score. It also reinforced a rule from my Ollama context reload test: context belongs in the measured configuration. A batch result without its context value is incomplete.

The prompt totals were small, so the larger context did not help the task. I would only pay for it when the input needs it.

How should you tune num_batch on your own GPU?

Hold the model, quant, context, prompts, output cap, and runtime version steady. Test a small ladder such as 128, 256, and 512. Record throughput, loaded memory, average power, and a task-level pass or fail.

Do not keep a setting because it wins one speed column. Reject any run that breaks the output contract. Then choose the smallest setting that captures nearly all of the useful speed with enough memory headroom for the real workload.

The same rule applies to model choice. My Ternary Bonsai comparison kept the larger Gemma default because instruction compliance beat file size. Runtime tuning should use the same gate: fit, run, verify, then keep.

Accompanying prompt

What the prompt does: It turns local Ollama benchmark rows into a measured num_batch recommendation without inventing missing data.

Copy/paste this prompt:

Copy-ready prompt

Paste the exact block into your coding agent.

No article chrome, no footnotes, no formatting drift.

Copy promptSelect text

Role: You are a local LLM runtime tuning reviewer. Context: Paste benchmark rows for one model and GPU. Include model, quant, runtime version, num_ctx, num_batch, tokens per second, power, loaded memory, and task verifier result when available. Task: Compare the settings and reject any run that fails the task verifier. Output: - A compact comparison table. - The smallest setting that captures nearly all useful speed. - The exact measurement missing before deployment. Constraints: - Compare only runs with the same workload. - Keep context attached to every batch result. - Separate measured values from estimates. - Do not invent missing power or memory readings.

21 lines/672 chars
